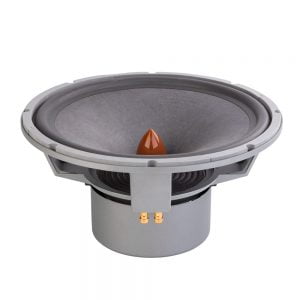

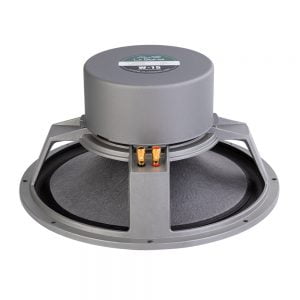

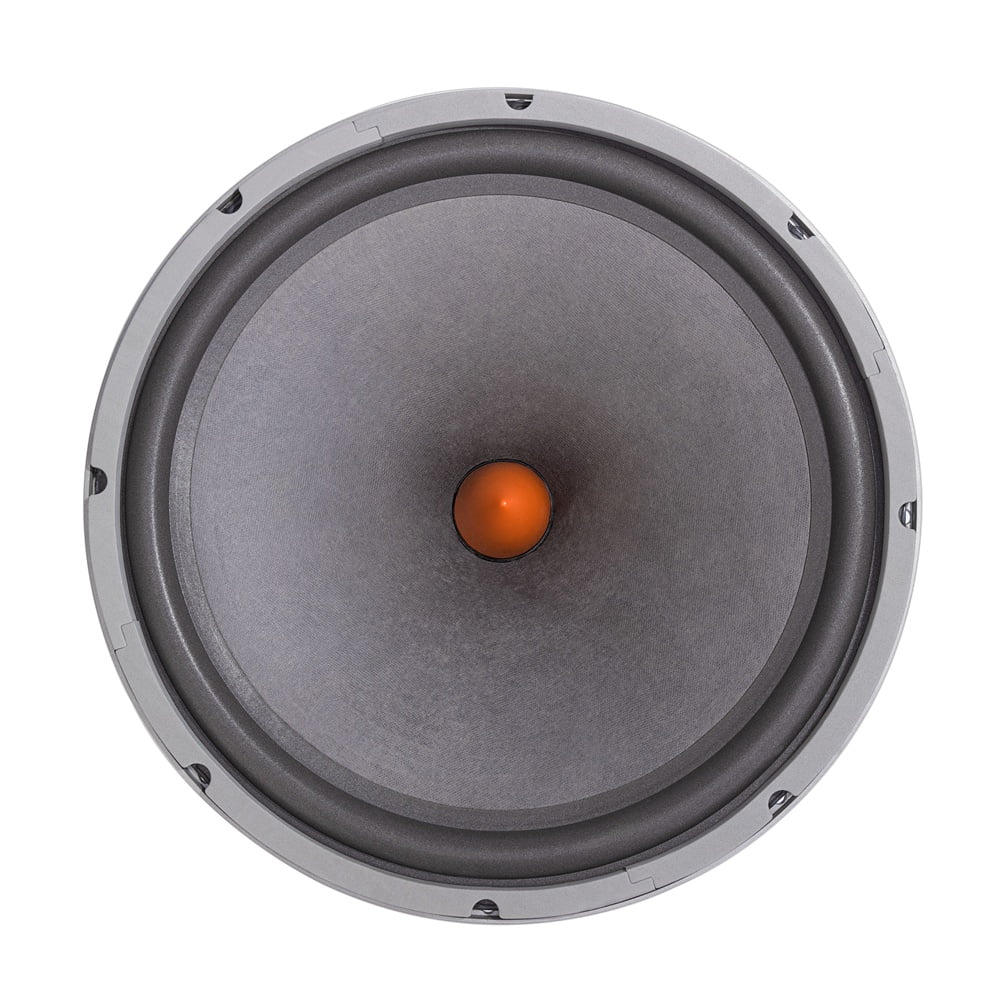

One unit (not pair) |15 Inch Woofer for Bass Compensation of Open Baffle or Cabinet | W-15


Technical Data:

  1. Related power – Maximum power: 100W – 150W
  2. Nominal Inpendance Z: 8+8 Ohm
  3. Fs: 27.6Hz
  4. Qms: 14.6
  5. Vas: 656 L
  6. Cms: 0.6 mm/N
  7. Mms: 95 g
  8. Rms: 0.81 kg/S
  9. Xmax: 15 mm(peak)
  10. Xmech: 20 mm(peak)
  11. Sd: 855 sqcm
  12. Vd: 2.05L (p-p)
  13. Qes: 0.97
  14. Re: 3.12 ohm
  15. Le: 0.04 mH
  16. Z: 6.7 ohm
  17. Bl: 6.1 T/m
  18. Pe: 100W (cont.)
  19. Qts: 0.79
  20. Sensitiviry (2.83V / 1m): 91 .3dB (single coil)
  21. Sensitiviry (2.83V / 1m): 95.6 dB (dual coil)

Weight (unit in package)  13.5KG

Dimension (package) 45 x 45 x 30 cm

Categories: , SKU: W-15


This woofer is the outcome of a experimental development of open baffle with our full range drivers. With superb bass performance, this W-15 can bring good bass even on narrow open baffles. It has a transparent tone so can bring a good coherence with most of the full rangers or tweeters&midrangers.

  1. It uses short coil and super thick washer design, leading to very weakened distortion, 15mm Xmax for a good bass.
  2. With Lii Song paper cone of unique material, it has a wide frequency response and transparent sound so that it can coordinate with a great variety of full range drivers.
  3. Double coil design let it competent to be adapted with amplifiers and connect in parallel or in series with other driver units, according to impedance.
  4. The double coil makes it possible to be served as subwoofer, giving you more possibilities to play with these drivers.
  5. As Lii Song driver developed by the same creator, this is a wonderful companion for other Lii Song full range drivers, especially on open baffle.





Additional information

Weight 16 kg
Dimensions 26 × 55 × 55 cm
